GZGS2

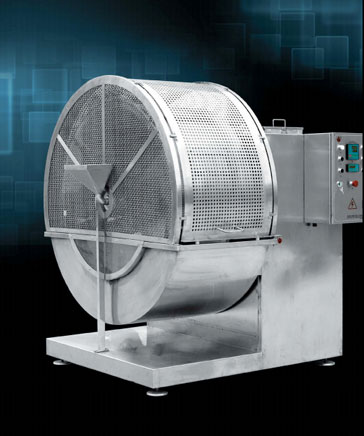

GZGS2 TYPE INTERNAL CIRCULATION STAINLESS STEEL TEMPERATURE REGULATION TEST DRUM

MAIN FUNCTION AND CHARACTERISTICS

The drum adopts self-circulating system,when the drum rotates,the self-circulating system will make the liquid which is in the drum flow to shaft-bottom heater through shaft-hole,after heating the liquid will flow back to the drum through shaft-hole divider.The structure of this heating method is easy with simple maintenance. It is possible to make choice between the electrical heating and steam heating modes,even the double supply of both steam and electricity is feasible while it is adjustable to control the temperature at the range from the normal temperature up to 80℃ with the precision at ±1℃,which could meet the demand for various processing needs.

We adopt intelligent controller or PLC touch screen together with frequency conversion function to make it possible for automatic rotation in positive and reverse direction,intermittent shutdown,single-direction rotation,forward/backward inching operation and so on.

The chain & chain wheel we adopt,being smooth with low vibration and low noise in driving,can stand long-term operation with low frequency of maintenance.

On the end of the drum is mounted with the toughened glass to enable the visual observation of the straining state inside the drum,which has such merits as resisting the mechanical impact,heating shock and being free from deformation or color changing.

We have perfect security protection system with protective cover（Full cover can be selected) and protective door which adopts electromechanical interlocking device to ensure operational safety.This drum has received the European CE safety certification.

TECHNICIAL PARAMETERS

Model & Size		GZGS2- 80×40	GZGS2- 100×50	GZGS2- 120×60	GZGS2- 140×60	GZGS2- 160×60	GZGS2- 180×60
Diameter of drum	mm	800	1000	1200	1400	1600	1800
Width of drum	mm	400	500	600	600	600	600
Volume of drum	l	150	310	560	760	1000	1280
Loading capacity	kg	12	26	47	64	85	108
Drum speed	rpm	0-25	0-25	0-25	0-20	0-20	0-20
Motor power	kw	1.5	1.5	2.2	2.2	4	4
Heating power	kw	4.5	6	6	6	6	9
Outlinedimension(Length)	mm	1160	1480	1580	1700	1880	2200
Outline dimension(Width)	mm	1200	1460	1560	1660	1660	1700
Outline dimension(Height)	mm	1580	1700	1850	1950	2100	2200
Total weight	t	0.4	0.6	0.7	0.8	1.2	1.6
